Slides for Lecture Section D

D1-1 A typical built-up joint of a truss.

D1-2 The equilibrium of forces between each shear plane

D1-3 Combination of members for the determination of the load-carrying

capacity.

D2-1 Effect of eccentric connections.

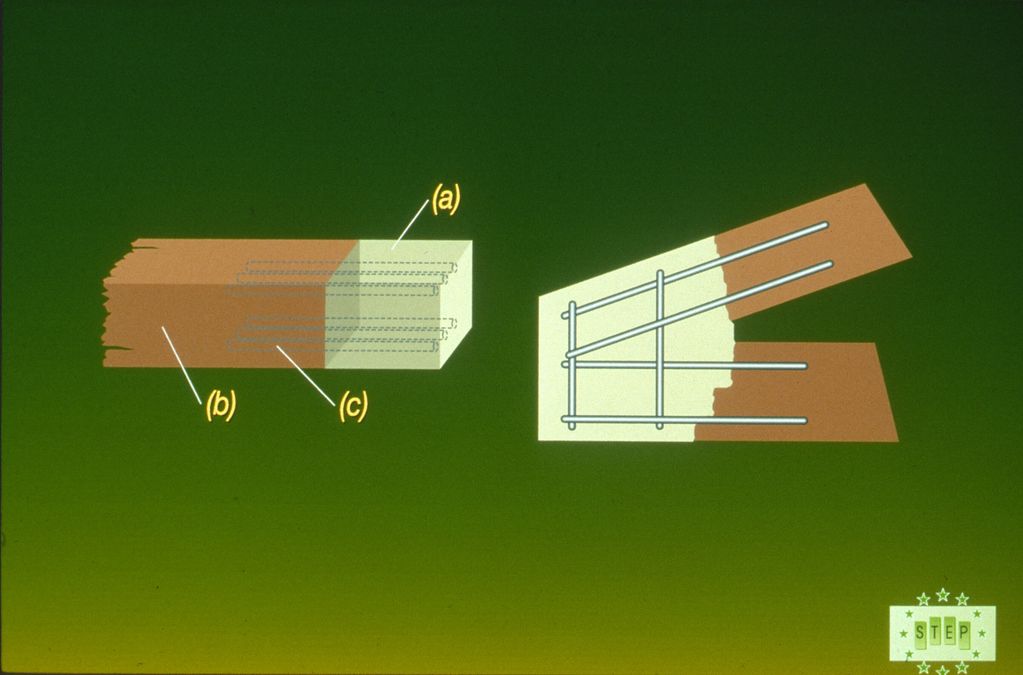

D4-1 Replacement of inefficient segments of original members with epoxy.

(a) Beam end replacement,

(b) original timber,

(c) steel or fibre glass rods.

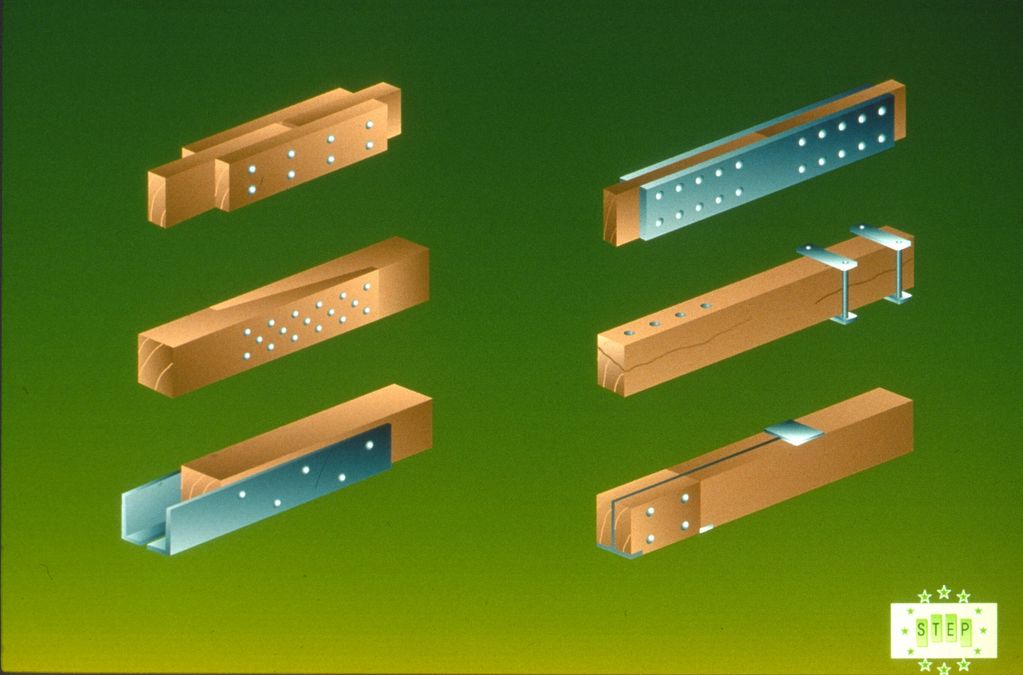

D4-2 Replacement of inefficient segments of original members by means of traditional joints; left, top to bottom:

• splice joint covered by bolted
• wooden plates,
• nailed spliced bevelled joint,
• bolted end joint with steel channel;

right, top to bottom:

• splice joint covered by bolted steel plates,
• shear reinforcement with nails or steel clamps,
• splice joint with internal steel plate
